U-Drain

U-Drain channels are used as storm water drains. We also manufacture them with a interlocking joint which allows for easy and precise installation. U-Drains can be used as Cable Trenches also. The wall thickness, reinforcement and grade of concrete varies based on the expected load capacity and other technical requirements of the client. . We also Manufacture cover slab for U-Drains with Holes, Slots or Plain with Astectically Appealing Designs We can also customize this product to suite any Requirement

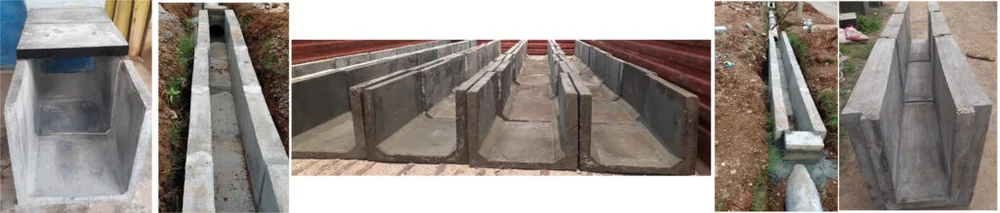

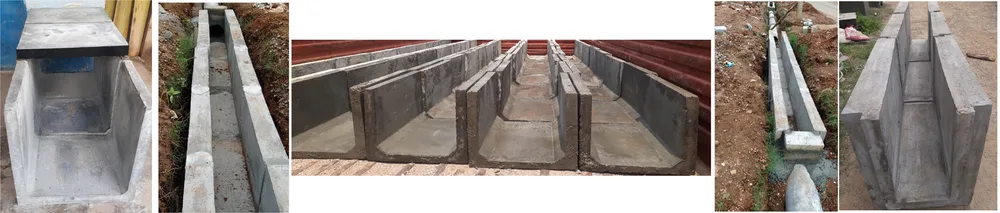

U-Drains / Channel Drain

Clear Opening Wall Thickness Length
300 x 300 40 500
300 x 450 40 500
450 x 450 65 500
600 x 600 65 500
750 x 750 100 500
300 x 600 150 1000
Note: All Measurements are in MM. Tolerance on quality Parameter +/- 0.5% allowed

We Undertake Customization of the Product as per Customer Requirement

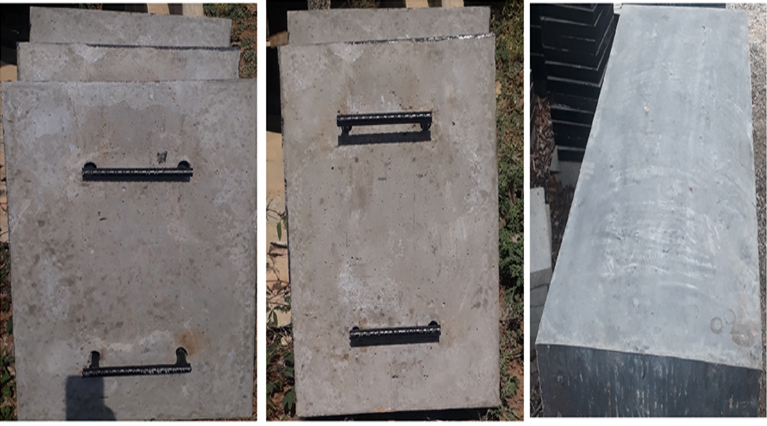

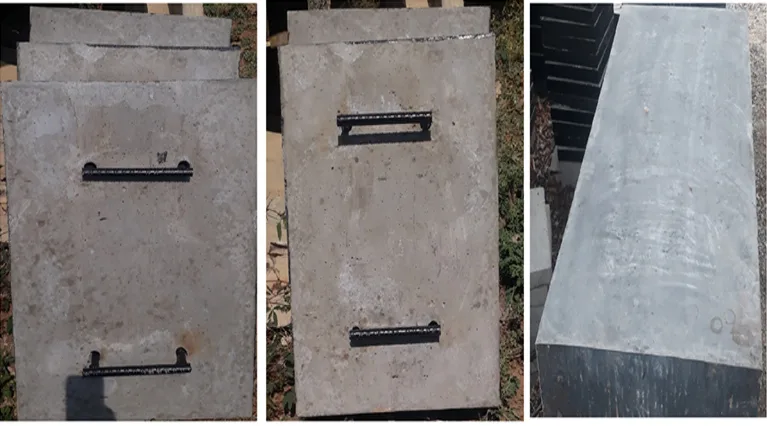

Drain Covers / Slabs

Drain Slabs or Slabs comes with Various Sizes, Capacity, Finish etc, Below are some of the Designs for your reference. We Customize this product to suite any Requirment

Drain Slabs

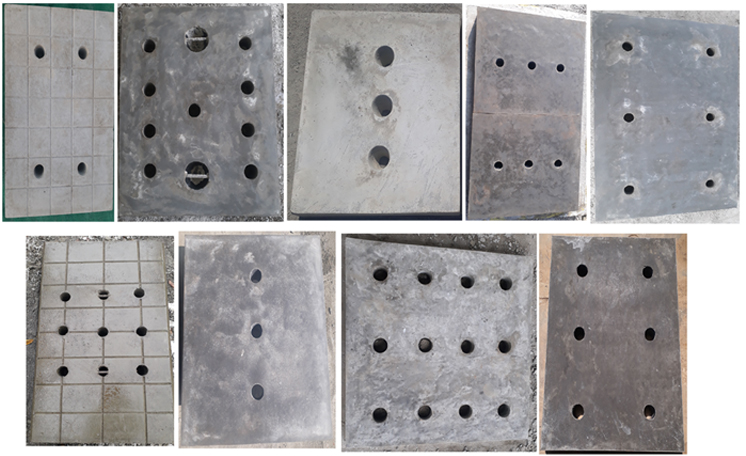

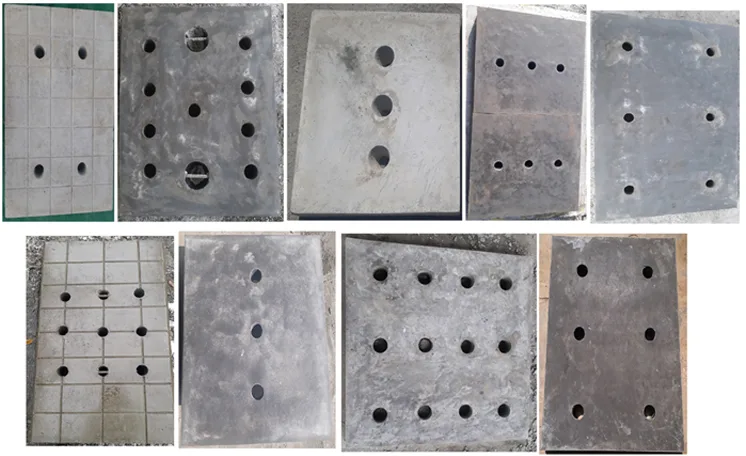

Perforated Drain Slabs

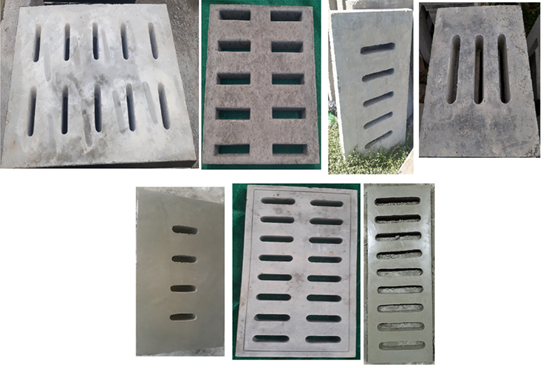

Slotted Drain Slabs

Note: All Measurements are in MM. Tolerance on quality Parameter +/- 0.5% allowed

We Undertake Customization of the Product as per Customer Requirement
