Inspection Chambers are available for Electrical Earthing, Hume pipe Connection/Catch basin, & Rainwater Harvesting. These can be customized with either RCC/SFRC Covers, GI Covers or Cast Iron Covers based on the requirement. These are available in Round, Square & Rectangular Shapes. It comes with Inbuilt Covers/OD Covers/Covers with Service Access. Lifting Hooks are provided without drain hole to prevent water from Entering inside. Cover are reinforced with MS Sheets to prevent edge Damage, this also gives enhanced strength to the covers. These are used for both Domestic & Commercial use.

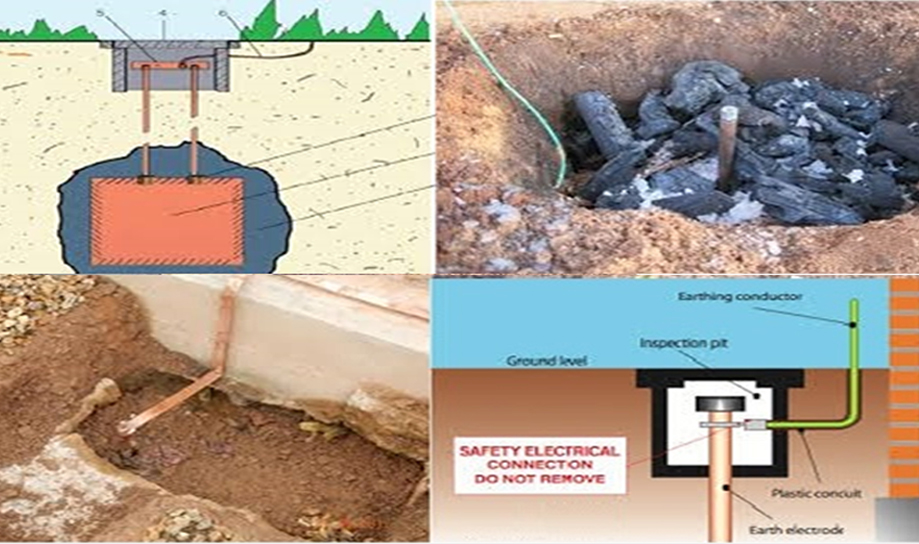

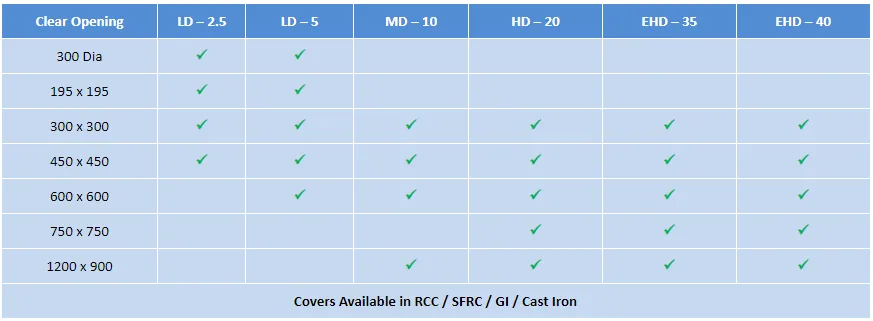

Earthing / Earthpit Box
Note: All Measurements are in MM. Tolerance on quality Parameter +/- 0.5% allowed
We Undertake Customization of the Product as per Customer Requirement

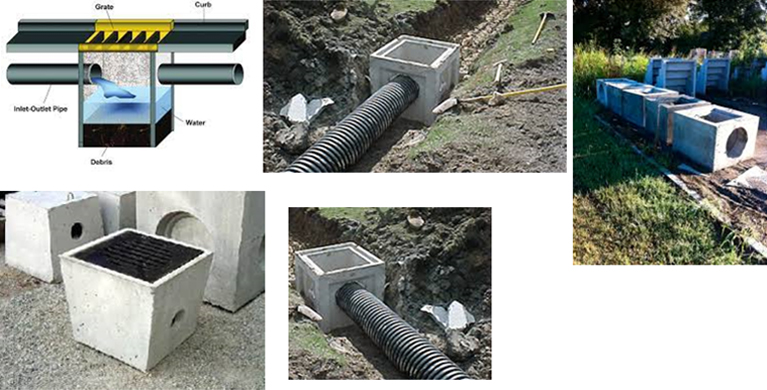

Catch Basin / Inspection Chamber
Note: All Measurements are in MM. Tolerance on quality Parameter +/- 0.5% allowed
We Undertake Customization of the Product as per Customer Requirement

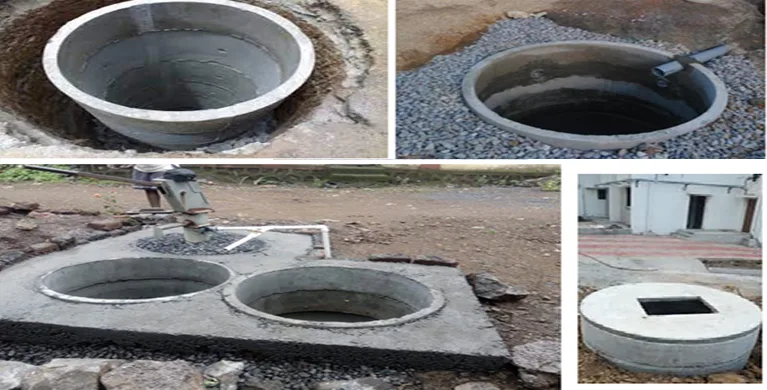

Rain Water Harvesting / Well Rings & Covers
| Outer | Clear Opening | Wall thickness | Height | |||
| 1000 Dia | 900 Dia | 50 | 230 | |||
| 1000 Dia | 850 Dia | 75 | 600 | |||
| 1050 Dia | 900 Dia | 75 | 300 | |||
| 1250 Dia | 1100 Dia | 75 | 300 | |||
| 1500 Dia | 1400 Dia | 50 | 300 | |||
| 2000 Dia | 1850 Dia | 75 | 300 | |||
| Cover Available in RCC / SFRC | ||||||
